FRAME DOMES
Framed Geodesic Domes are partial-spherical structures made from a network of triangles that distribute stress evenly across the structure.
The triangles in a geodesic dome are typically made from structural struts or beams connected at nodes. The materials used for these struts can vary depending on the dome’s purpose and size.
DIFFERENT SIZED FRAMED DOME INFORMATION
SMALL SIZE DOMES
D10V2 (HALF SPHERE)
- DOME DIA = 10 FEET
- FREQUENCY = 2
- HEIGHT = 5 FEET
- BASE AREA = 74 Sq.Ft.
- BASE NODES = 10
D20V2 (HALF SPHERE)
- DOME DIA = 20 FEET
- FREQUENCY = 2
- HEIGHT = 10 FEET
- BASE AREA = 294 Sq.Ft.
- BASE NODES = 10
D30V3 (HALF SPHERE)
- DOME DIA = 30 FEET
- FREQUENCY = 3
- HEIGHT = 15 FEET
- BASE AREA = 666 Sq.Ft.
- BASE NODES = 15
MEDIUM SIZE DOMES
D40V3 (HALF SPHERE)
- DOME DIA = 20 FEET
- FREQUENCY = 3
- HEIGHT = 20 FEET
- BASE AREA = 1184 Sq.Ft.
- BASE NODES = 15
D50V4 (HALF SPHERE)
- DOME DIA = 50 FEET
- FREQUENCY = 4
- HEIGHT = 25 FEET
- BASE AREA = 1931 Sq.Ft.
- BASE NODES = 20
LARGE SIZE DOMES
D60V5 (HALF SPHERE)
- DOME DIA = 60 FEET
- FREQUENCY = 5
- HEIGHT = 30 FEET
- BASE AREA = 2767 Sq.Ft.
- BASE NODES = 25

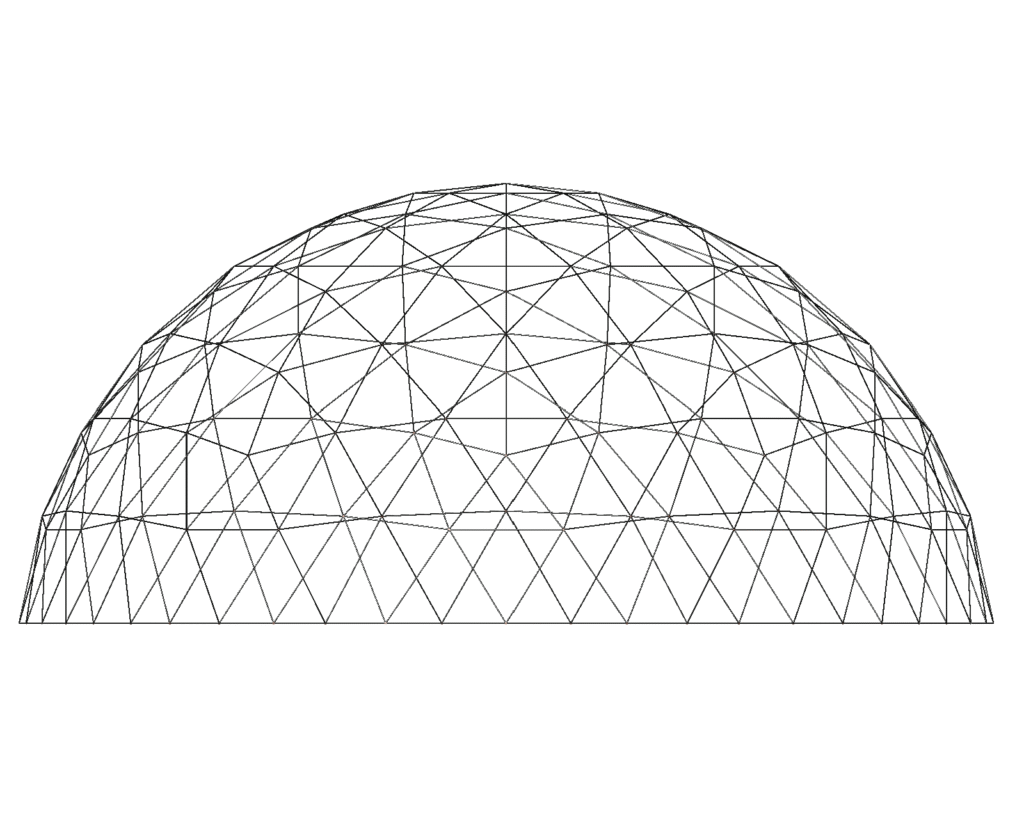

D75V6 (HALF SPHERE)
- DOME DIA = 75 FEET
- FREQUENCY = 6
- HEIGHT = 37.5 FEET
- BASE AREA = 4385 Sq.Ft.
- BASE NODES = 30
BIG DOMES DOMES
D100V7 (HALF SPHERE)
- DOME DIA = 100 FEET
- FREQUENCY = 7
- HEIGHT = 50 FEET
- BASE AREA = 7768 Sq.Ft.
- BASE NODES = 35
D125V8 (HALF SPHERE)
- DOME DIA = 125 FEET
- FREQUENCY = 8
- HEIGHT = 62.5 FEET
- BASE AREA = 12,221 Sq.Ft.
- BASE NODES = 40

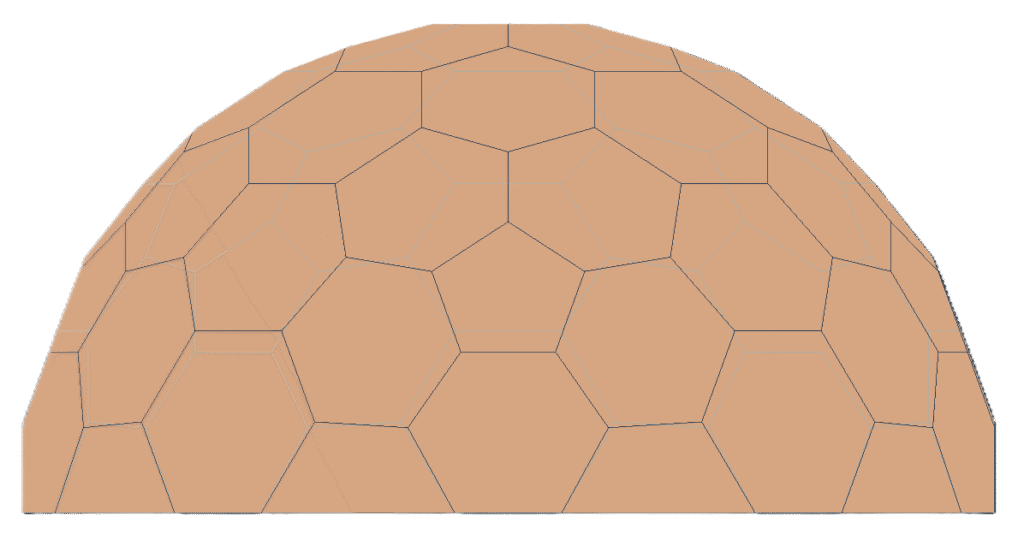

PANEL DOMES
Panel Geodesic Domes are a variation of geodesic domes where Solid Panels (instead of open frameworks) are used to form the triangular or polygonal faces of the dome. These panels act as both the structural skin and the enclosure of the dome, combining strength and insulation in a single system.
